Getting started¶

[7]:

import pyroma
roma = pyroma.ROMA()
roma

[7]:

scROMA

[ ]:

import os
import zipfile
import io
import numpy as np
import pandas as pd
import scanpy as sc
import scipy.io
from glob import glob

[ ]:

adata = pyroma.datasets.pbmc3k()
adata

standard preprocessing¶

[6]:

sc.pp.filter_cells(adata, min_genes=100)
sc.pp.filter_genes(adata, min_cells=3)
sc.pp.normalize_total(adata)
sc.pp.log1p(adata)

[7]:

adata

[7]:

AnnData object with n_obs × n_vars = 2700 × 13714
    obs: 'celltype', 'n_genes'
    var: 'gene_ids', 'n_cells'
    uns: 'log1p'

run pyroma¶

In order to load your custom genesets, or any publicly available .gmt file indicate the absolute path for roma.gmt

[ ]:

hallmarks_gmt_path = pyroma.genesets.use_hallmarks()

[ ]:

import time

roma.gmt = hallmarks_gmt_path

roma.adata = adata
roma.pc_sign_mode = 'UseMeanExpressionAllWeights'
pathways_to_check = 'all' #['HALLMARK_NOTCH_SIGNALING', 'HALLMARK_PANCREAS_BETA_CELLS', 'HALLMARK_TGF_BETA_SIGNALING' ]

iters = 100

start = time.time()
roma.compute(pathways_to_check,
             parallel=True,
             loocv_on=True,
            iters=iters,
            verbose=0)
end = time.time()

minutes, seconds = divmod(end - start, 60)
print(f"CPU Parallel {iters} iterations for shape {adata.shape}, running time (min): " + "{:0>2}:{:05.2f}".format(int(minutes),seconds))

Processing gene set: HALLMARK_NOTCH_SIGNALING | len of subsetlist:  25
Processing gene set: HALLMARK_HEDGEHOG_SIGNALING | len of subsetlist:  17
Processing gene set: HALLMARK_ANGIOGENESIS | len of subsetlist:  15
Processing gene set: HALLMARK_PANCREAS_BETA_CELLS | len of subsetlist:  14
Processing gene set: HALLMARK_WNT_BETA_CATENIN_SIGNALING | len of subsetlist:  33
Processing gene set: HALLMARK_APICAL_SURFACE | len of subsetlist:  26
Processing gene set: HALLMARK_REACTIVE_OXYGEN_SPECIES_PATHWAY | len of subsetlist:  47
Processing gene set: HALLMARK_TGF_BETA_SIGNALING | len of subsetlist:  47
Processing gene set: HALLMARK_MYC_TARGETS_V2 | len of subsetlist:  57
Processing gene set: HALLMARK_CHOLESTEROL_HOMEOSTASIS | len of subsetlist:  61
Processing gene set: HALLMARK_IL6_JAK_STAT3_SIGNALING | len of subsetlist:  71
Processing gene set: HALLMARK_PROTEIN_SECRETION | len of subsetlist:  88
Processing gene set: HALLMARK_INTERFERON_ALPHA_RESPONSE | len of subsetlist:  93
Processing gene set: HALLMARK_ANDROGEN_RESPONSE | len of subsetlist:  82
Processing gene set: HALLMARK_PEROXISOME | len of subsetlist:  86
Processing gene set: HALLMARK_PI3K_AKT_MTOR_SIGNALING | len of subsetlist:  91
Processing gene set: HALLMARK_BILE_ACID_METABOLISM | len of subsetlist:  73
Processing gene set: HALLMARK_UNFOLDED_PROTEIN_RESPONSE | len of subsetlist:  102
Processing gene set: HALLMARK_SPERMATOGENESIS | len of subsetlist:  71
Processing gene set: HALLMARK_COAGULATION | len of subsetlist:  75
Processing gene set: HALLMARK_UV_RESPONSE_DN | len of subsetlist:  100
Processing gene set: HALLMARK_DNA_REPAIR | len of subsetlist:  142
Processing gene set: HALLMARK_FATTY_ACID_METABOLISM | len of subsetlist:  127
Processing gene set: HALLMARK_UV_RESPONSE_UP | len of subsetlist:  124
Processing gene set: HALLMARK_APOPTOSIS | len of subsetlist:  142
Processing gene set: HALLMARK_MITOTIC_SPINDLE | len of subsetlist:  179
Processing gene set: HALLMARK_IL2_STAT5_SIGNALING | len of subsetlist:  164
Processing gene set: HALLMARK_TNFA_SIGNALING_VIA_NFKB | len of subsetlist:  172
Processing gene set: HALLMARK_HYPOXIA | len of subsetlist:  138
Processing gene set: HALLMARK_G2M_CHECKPOINT | len of subsetlist:  174
Processing gene set: HALLMARK_ADIPOGENESIS | len of subsetlist:  160
Processing gene set: HALLMARK_ESTROGEN_RESPONSE_EARLY | len of subsetlist:  126
Processing gene set: HALLMARK_ESTROGEN_RESPONSE_LATE | len of subsetlist:  125
Processing gene set: HALLMARK_MYOGENESIS | len of subsetlist:  112
Processing gene set: HALLMARK_INTERFERON_GAMMA_RESPONSE | len of subsetlist:  187
Processing gene set: HALLMARK_APICAL_JUNCTION | len of subsetlist:  119
Processing gene set: HALLMARK_COMPLEMENT | len of subsetlist:  159
Processing gene set: HALLMARK_MTORC1_SIGNALING | len of subsetlist:  187
Processing gene set: HALLMARK_E2F_TARGETS | len of subsetlist:  181
Processing gene set: HALLMARK_MYC_TARGETS_V1 | len of subsetlist:  192
Processing gene set: HALLMARK_EPITHELIAL_MESENCHYMAL_TRANSITION | len of subsetlist:  93
Processing gene set: HALLMARK_INFLAMMATORY_RESPONSE | len of subsetlist:  149
Processing gene set: HALLMARK_XENOBIOTIC_METABOLISM | len of subsetlist:  131
Processing gene set: HALLMARK_OXIDATIVE_PHOSPHORYLATION | len of subsetlist:  180
Processing gene set: HALLMARK_GLYCOLYSIS | len of subsetlist:  145
Processing gene set: HALLMARK_P53_PATHWAY | len of subsetlist:  160
Processing gene set: HALLMARK_HEME_METABOLISM | len of subsetlist:  154
Processing gene set: HALLMARK_ALLOGRAFT_REJECTION | len of subsetlist:  167
Processing gene set: HALLMARK_KRAS_SIGNALING_UP | len of subsetlist:  125
Processing gene set: HALLMARK_KRAS_SIGNALING_DN | len of subsetlist:  66
  Finished : CPU Parallel 100 iterations for shape (2700, 13714), running time (min): 01:00.46

[10]:

roma

[10]:

scROMA: module activities are computed

[11]:

roma.adata

[11]:

AnnData object with n_obs × n_vars = 2700 × 13714
    obs: 'celltype', 'n_genes'
    var: 'gene_ids', 'n_cells'
    uns: 'log1p', 'ROMA', 'ROMA_stats', 'ROMA_active_modules'

all the pyroma statistics¶

[12]:

roma.adata.uns['ROMA_stats']

[12]:

	L1	ppv L1	Median Exp	ppv Med Exp	q L1	q Med Exp
HALLMARK_NOTCH_SIGNALING	0.308422	0.38	-0.046337	0.356436	0.850000	0.990099
HALLMARK_HEDGEHOG_SIGNALING	0.436227	0.09	-0.043306	0.405941	0.833333	0.990099
HALLMARK_ANGIOGENESIS	0.682129	0.00	-0.092545	0.089109	0.000000	0.636492
HALLMARK_PANCREAS_BETA_CELLS	0.329636	0.34	-0.002735	0.970297	0.850000	0.990099
HALLMARK_WNT_BETA_CATENIN_SIGNALING	0.168701	0.91	0.027318	0.574257	1.000000	0.990099
HALLMARK_APICAL_SURFACE	0.273708	0.50	0.015345	0.693069	0.850000	0.990099
HALLMARK_REACTIVE_OXYGEN_SPECIES_PATHWAY	0.295123	0.16	0.010931	0.891089	0.850000	0.990099
HALLMARK_TGF_BETA_SIGNALING	0.234388	0.45	-0.024408	0.722772	0.850000	0.990099
HALLMARK_MYC_TARGETS_V2	0.190350	0.67	0.193093	0.009901	1.000000	0.165017
HALLMARK_CHOLESTEROL_HOMEOSTASIS	0.223410	0.51	-0.100565	0.089109	0.850000	0.636492
HALLMARK_IL6_JAK_STAT3_SIGNALING	0.241695	0.17	-0.072523	0.316832	0.850000	0.990099
HALLMARK_PROTEIN_SECRETION	0.072113	1.00	-0.062006	0.405941	1.000000	0.990099
HALLMARK_INTERFERON_ALPHA_RESPONSE	0.149181	0.46	0.140216	0.019802	0.850000	0.247525
HALLMARK_ANDROGEN_RESPONSE	0.188237	0.43	-0.077837	0.277228	0.850000	0.990099
HALLMARK_PEROXISOME	0.091941	0.98	-0.026166	0.772277	1.000000	0.990099
HALLMARK_PI3K_AKT_MTOR_SIGNALING	0.119006	0.85	0.053214	0.445545	1.000000	0.990099
HALLMARK_BILE_ACID_METABOLISM	0.134706	0.81	-0.041943	0.623762	1.000000	0.990099
HALLMARK_UNFOLDED_PROTEIN_RESPONSE	0.096724	0.96	-0.070962	0.435644	1.000000	0.990099
HALLMARK_SPERMATOGENESIS	0.204142	0.31	-0.050981	0.485149	0.850000	0.990099
HALLMARK_COAGULATION	0.185626	0.43	-0.015626	0.871287	0.850000	0.990099
HALLMARK_UV_RESPONSE_DN	0.189827	0.18	-0.044129	0.752475	0.850000	0.990099
HALLMARK_DNA_REPAIR	0.041673	1.00	-0.028492	0.881188	1.000000	0.990099
HALLMARK_FATTY_ACID_METABOLISM	0.153207	0.30	-0.055761	0.742574	0.850000	0.990099
HALLMARK_UV_RESPONSE_UP	0.123632	0.47	0.051468	0.782178	0.850000	0.990099
HALLMARK_APOPTOSIS	0.148120	0.33	-0.064821	0.653465	0.850000	0.990099
HALLMARK_MITOTIC_SPINDLE	0.059667	0.98	-0.047615	0.801980	1.000000	0.990099
HALLMARK_IL2_STAT5_SIGNALING	0.129669	0.34	0.052441	0.782178	0.850000	0.990099
HALLMARK_TNFA_SIGNALING_VIA_NFKB	0.109175	0.46	-0.109271	0.257426	0.850000	0.990099
HALLMARK_HYPOXIA	0.150902	0.32	-0.105616	0.217822	0.850000	0.990099
HALLMARK_G2M_CHECKPOINT	0.073522	0.90	0.004057	0.980198	1.000000	0.990099
HALLMARK_ADIPOGENESIS	0.059627	0.99	0.040987	0.831683	1.000000	0.990099
HALLMARK_ESTROGEN_RESPONSE_EARLY	0.165805	0.25	0.006120	0.990099	0.850000	0.990099
HALLMARK_ESTROGEN_RESPONSE_LATE	0.262778	0.06	-0.074091	0.544554	0.833333	0.990099
HALLMARK_MYOGENESIS	0.130965	0.63	0.044766	0.742574	1.000000	0.990099
HALLMARK_INTERFERON_GAMMA_RESPONSE	0.141345	0.30	0.137520	0.039604	0.850000	0.396040
HALLMARK_APICAL_JUNCTION	0.160732	0.39	-0.106446	0.267327	0.850000	0.990099
HALLMARK_COMPLEMENT	0.251886	0.08	-0.015366	0.950495	0.833333	0.990099
HALLMARK_MTORC1_SIGNALING	0.080113	0.84	-0.088205	0.465347	1.000000	0.990099
HALLMARK_E2F_TARGETS	0.052116	0.98	0.017490	0.920792	1.000000	0.990099
HALLMARK_MYC_TARGETS_V1	0.083975	0.80	-0.264613	0.009901	1.000000	0.165017
HALLMARK_EPITHELIAL_MESENCHYMAL_TRANSITION	0.268412	0.10	-0.062662	0.514851	0.833333	0.990099
HALLMARK_INFLAMMATORY_RESPONSE	0.116391	0.49	-0.059221	0.693069	0.850000	0.990099
HALLMARK_XENOBIOTIC_METABOLISM	0.072259	0.97	-0.044517	0.792079	1.000000	0.990099
HALLMARK_OXIDATIVE_PHOSPHORYLATION	0.039787	1.00	-0.164421	0.009901	1.000000	0.165017
HALLMARK_GLYCOLYSIS	0.096515	0.72	0.081126	0.495050	1.000000	0.990099
HALLMARK_P53_PATHWAY	0.184979	0.21	-0.104431	0.227723	0.850000	0.990099
HALLMARK_HEME_METABOLISM	0.054095	1.00	-0.016380	0.940594	1.000000	0.990099
HALLMARK_ALLOGRAFT_REJECTION	0.212133	0.10	-0.025685	0.891089	0.833333	0.990099
HALLMARK_KRAS_SIGNALING_UP	0.191552	0.19	-0.082999	0.495050	0.850000	0.990099
HALLMARK_KRAS_SIGNALING_DN	0.158874	0.79	0.038865	0.584158	1.000000	0.990099

active pathways¶

[13]:

roma.adata.uns['ROMA_active_modules'].sort_values(by='Median Exp')

[13]:

	L1	ppv L1	Median Exp	ppv Med Exp	q L1	q Med Exp
HALLMARK_ANGIOGENESIS	0.682129	0.0	-0.092545	0.089109	0.0	0.636492

visualize results¶

[14]:

sc.pp.pca(roma.adata)
sc.pp.neighbors(roma.adata)
sc.tl.umap(roma.adata)

[15]:

adata.obs

[15]:

	celltype	n_genes
AAACATACAACCAC-1	CD4 T	781
AAACATTGAGCTAC-1	B	1352
AAACATTGATCAGC-1	CD4 T	1131
AAACCGTGCTTCCG-1	CD14 Monocytes	960
AAACCGTGTATGCG-1	NK	522
...	...	...
TTTCGAACTCTCAT-1	CD14 Monocytes	1155
TTTCTACTGAGGCA-1	B	1227
TTTCTACTTCCTCG-1	B	622
TTTGCATGAGAGGC-1	B	454
TTTGCATGCCTCAC-1	CD4 T	724

2700 rows × 2 columns

[16]:

sc.pl.pca(adata, color=['celltype',
                                ],
                                frameon=False,
                                ncols=2,
                                wspace=0.4)

../_images/tutorials_getting_started_20_0.png

[17]:

sc.pl.umap(adata, color=['celltype',
                                ],
                                frameon=False,
                                ncols=2,
                                wspace=0.4)

../_images/tutorials_getting_started_21_0.png

[18]:

geneset_name = 'HALLMARK_INFLAMMATORY_RESPONSE'

roma.adata.obs[f'{geneset_name}_projections_1'] = roma.adata.uns['ROMA'][f'{geneset_name}'].svd.components_[0]
roma.adata.obs[f'{geneset_name}_projections_1_reverse'] = -1 * roma.adata.uns['ROMA'][f'{geneset_name}'].svd.components_[0]

GeneScores = pd.DataFrame(roma.adata.uns['ROMA'][f'{geneset_name}'].projections_1,
                index=roma.adata.uns['ROMA'][f'{geneset_name}'].subsetlist,
                columns=[f'{geneset_name}'])

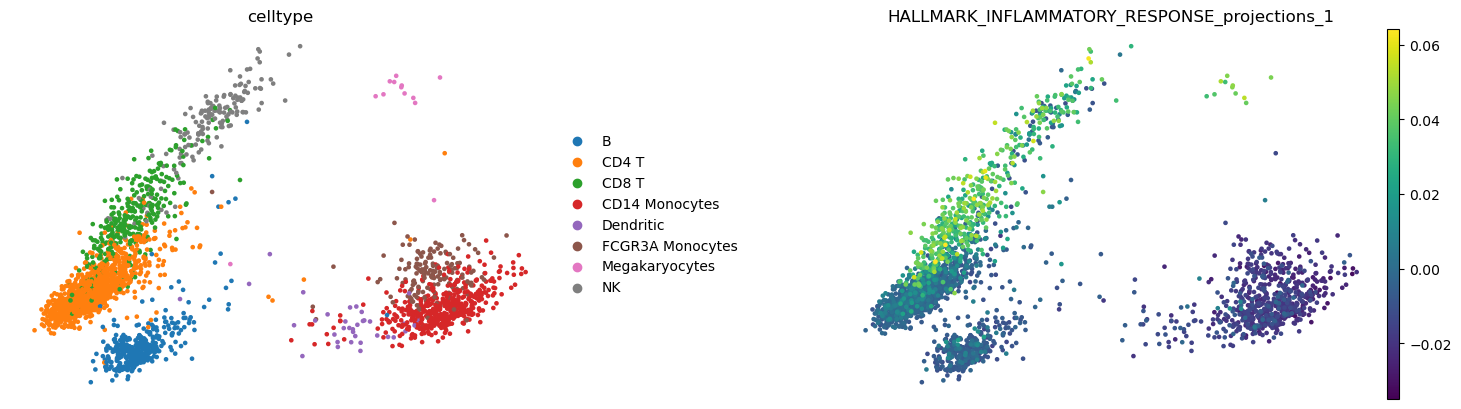

sc.pl.pca(adata, color=['celltype',
                                f'{geneset_name}_projections_1'],
                                frameon=False,
                                ncols=2,
                                wspace=0.4)

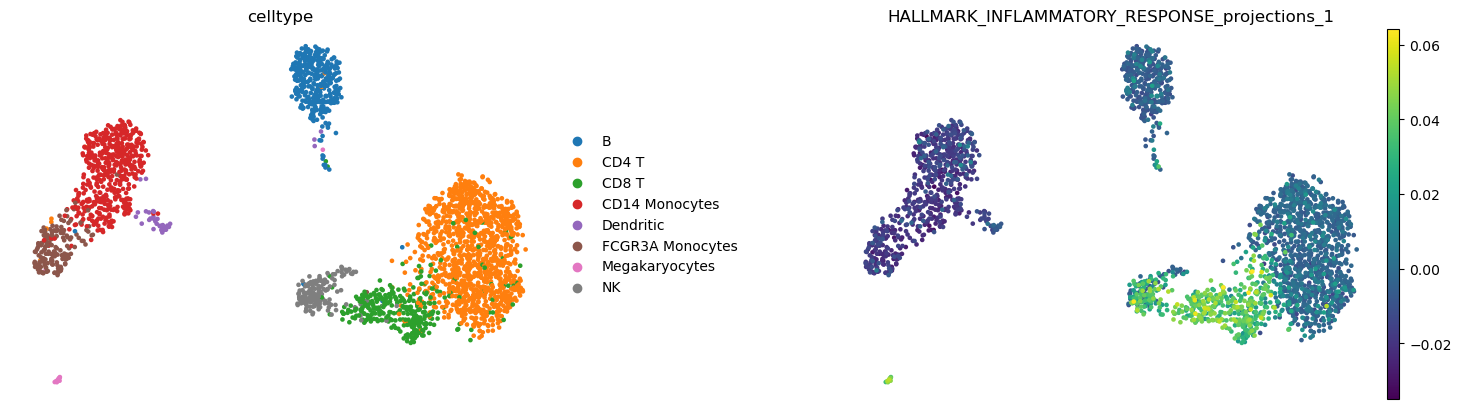

sc.pl.umap(adata, color=['celltype',
                                f'{geneset_name}_projections_1'],
                                frameon=False,
                                ncols=2,
                                wspace=0.4)

../_images/tutorials_getting_started_22_0.png

../_images/tutorials_getting_started_22_1.png

[19]:

GeneScores

[19]:

	HALLMARK_INFLAMMATORY_RESPONSE
CXCL10	-0.170376
CCL2	-0.171694
CCL5	45.372082
FPR1	-3.665694
CCL20	0.093291
...	...
STAB1	-0.306701
IRF1	1.357086
ICAM4	-0.329905
P2RX4	-0.153743
ABI1	1.406667

149 rows × 1 columns

[20]:

# optional: to load pathway-genes dictionary
genesets = roma.read_gmt_to_dict(roma.gmt)

save and load results¶

[21]:

save_dir = 'results'

roma.save_active_modules_results(path=save_dir)

[22]:

del roma.adata

[23]:

#roma.adata

[24]:

load_dir = 'results'

roma.load_active_modules_results(path=save_dir)

[25]:

roma.adata

[25]:

AnnData object with n_obs × n_vars = 2700 × 13714
    obs: 'celltype', 'n_genes', 'HALLMARK_INFLAMMATORY_RESPONSE_projections_1', 'HALLMARK_INFLAMMATORY_RESPONSE_projections_1_reverse'
    var: 'gene_ids', 'n_cells'
    uns: 'ROMA_active_modules', 'ROMA_stats', 'celltype_colors', 'log1p', 'neighbors', 'pca', 'umap', 'ROMA'
    obsm: 'X_pca', 'X_umap'
    varm: 'PCs'
    obsp: 'connectivities', 'distances'

top contributing genes¶

[26]:

GeneScores.sort_values(by=geneset_name)

[26]:

	HALLMARK_INFLAMMATORY_RESPONSE
LY6E	-9.469896
TIMP1	-8.930674
CD14	-7.395456
NFKBIA	-5.897358
RHOG	-4.730138
...	...
CD69	3.288985
IL7R	6.165412
IFITM1	6.817437
LCK	8.328794
CCL5	45.372082

149 rows × 1 columns

[27]:

# number of top and bottom genes
n_top = 10
short_name = geneset_name.split('_')[1]

top_n = GeneScores.sort_values(by=f'{geneset_name}', ascending=False).head(n_top).index.tolist()
bottom_n = GeneScores.sort_values(by=f'{geneset_name}', ascending=False).tail(n_top).index.tolist()

top_mean_exp = roma.adata[:, top_n].X.mean(axis=1)
bottom_mean_exp = roma.adata[:, bottom_n].X.mean(axis=1)

roma.adata.obs[f'top_{n_top}_{short_name}_Mean_Exp'] = top_mean_exp
roma.adata.obs[f'bottom_{n_top}_{short_name}_Mean_Exp'] = bottom_mean_exp

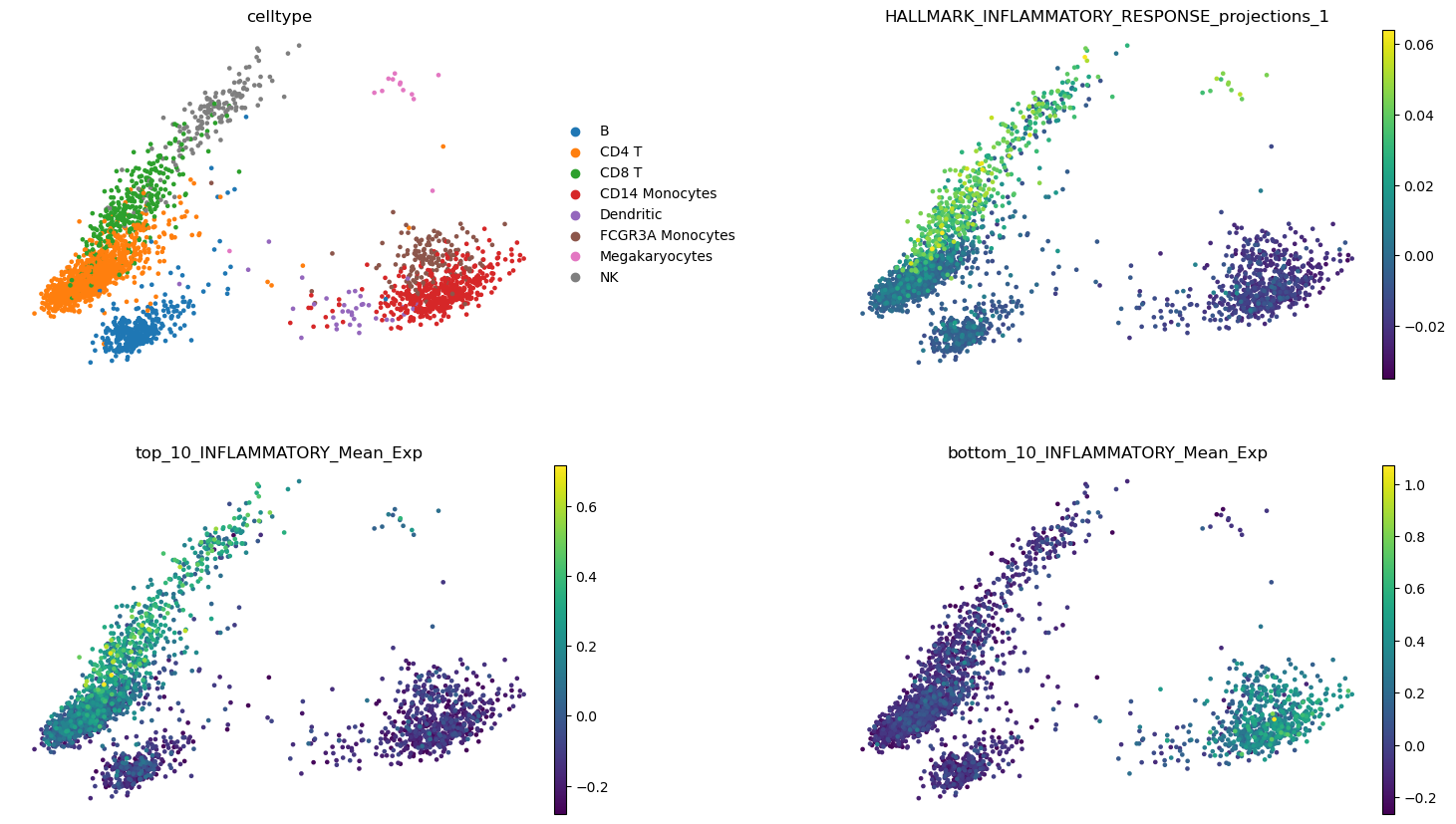

sc.pl.pca(roma.adata, color=['celltype',
                                f'{geneset_name}_projections_1',
                                f'top_{n_top}_{short_name}_Mean_Exp',
                                f'bottom_{n_top}_{short_name}_Mean_Exp'],
                                frameon=False,
                                ncols=2,
                                wspace=0.4)

sc.pl.umap(roma.adata, color=['celltype',
                                f'{geneset_name}_projections_1',
                                f'top_{n_top}_{short_name}_Mean_Exp',
                                f'bottom_{n_top}_{short_name}_Mean_Exp'],
                                frameon=False,
                                ncols=2,
                                wspace=0.4)

../_images/tutorials_getting_started_33_0.png

../_images/tutorials_getting_started_33_1.png

end¶

[ ]:
