Advanced Usage - PBMC + IFNb in sample scenario¶

In this tutorial we’ll be using pyroma to capture sample level variations in the perturbed setting. By querying predefined genesets, such as MSigDb Hallmarks, such approach highlights the largest sources of variance inside the dataset. This could give insights into how such variance relates to the perturbed condition, cell types, cluster or other labels.

[ ]:

import os
import zipfile
import io
import numpy as np
import pandas as pd
import scanpy as sc
import scipy.io
from glob import glob
import time

sc.set_figure_params(figsize=(3, 3), frameon=False )

import pyroma
roma = pyroma.ROMA()
roma

scROMA

load the PBMC dataset with IFNb stimulation from Kang et al. 2018¶

This is a good dataset for our purpose with clear expected biological response upon perturbation

[2]:

adata = pyroma.datasets.pbmc_ifnb()
adata

[2]:

AnnData object with n_obs × n_vars = 13576 × 14053
    obs: 'orig.ident', 'nCount_RNA', 'nFeature_RNA', 'stim', 'seurat_annotations', 'integrated_snn_res.0.5', 'seurat_clusters', 'condition', 'cell_type'

subsmaple to reduce the computation cost

[3]:

sc.pp.subsample(adata, n_obs=3000)

standard preprocessing¶

[4]:

sc.pp.filter_cells(adata, min_genes=100)
sc.pp.filter_genes(adata, min_cells=3)
sc.pp.normalize_total(adata)
sc.pp.log1p(adata)

[5]:

adata

[5]:

AnnData object with n_obs × n_vars = 3000 × 12158
    obs: 'orig.ident', 'nCount_RNA', 'nFeature_RNA', 'stim', 'seurat_annotations', 'integrated_snn_res.0.5', 'seurat_clusters', 'condition', 'cell_type', 'n_genes'
    var: 'n_cells'
    uns: 'log1p'

first look at the data¶

[6]:

sc.tl.pca(adata)
sc.pp.neighbors(adata)
sc.tl.umap(adata)

[7]:

# "seurat_annotations" contain cell type information
# "condition" - is the IFNb stimulation category

sc.pl.umap(adata, color=['seurat_annotations', 'condition'],
           ncols=2,
           wspace=0.5)

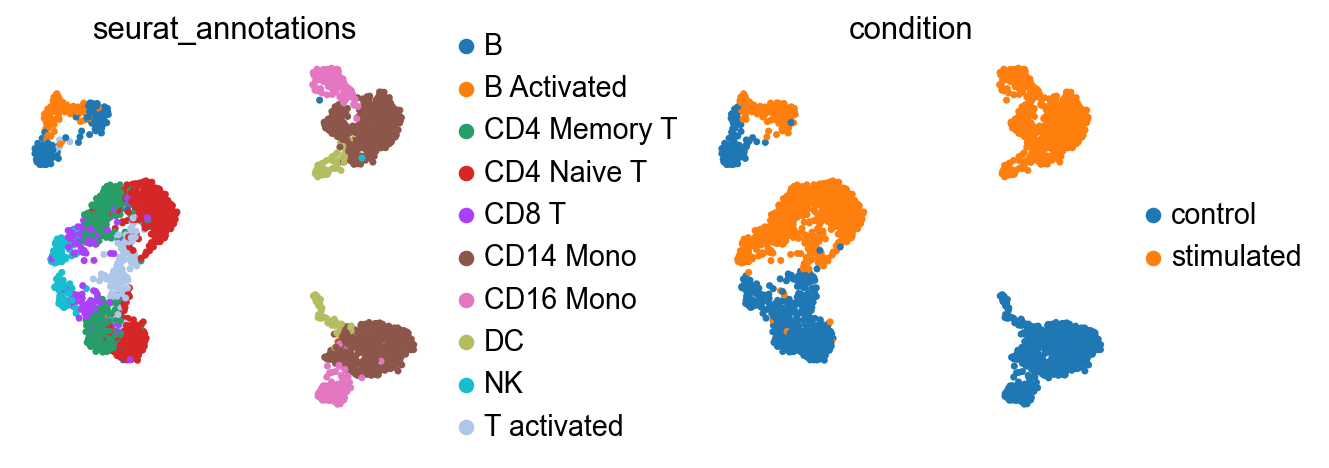

../_images/tutorials_advanced_usage_12_0.png

run pyroma¶

[8]:

hallmarks_gmt_path = pyroma.genesets.use_hallmarks()

[9]:

### change your output directory to store results

output_dir = "/home/az/Downloads/tutorial-test-results/02_pbmc_ifnb_sample/"
sample_name = "kang_sample_all"
roma.gmt = hallmarks_gmt_path

roma.adata = adata
roma.pc_sign_mode = 'UseMeanExpressionAllWeights'
pathways_to_check = 'all'

iters = 100

start = time.time()
roma.compute(pathways_to_check,
             parallel=True,
             loocv_on=True,
             iters=iters,
            )

# save the results
roma.save_active_modules_results(os.path.join(output_dir,sample_name), only_active=False)

end = time.time()

minutes, seconds = divmod(end - start, 60)
print(f"CPU Parallel {iters} iterations for shape {adata.shape}, running time (min): " + "{:0>2}:{:05.2f}".format(int(minutes),seconds))

Processing gene set: HALLMARK_NOTCH_SIGNALING | len of subsetlist: 27
Processing gene set: HALLMARK_HEDGEHOG_SIGNALING | len of subsetlist: 17
Processing gene set: HALLMARK_ANGIOGENESIS | len of subsetlist: 20
Processing gene set: HALLMARK_PANCREAS_BETA_CELLS | len of subsetlist: 14
Processing gene set: HALLMARK_WNT_BETA_CATENIN_SIGNALING | len of subsetlist: 33
Processing gene set: HALLMARK_APICAL_SURFACE | len of subsetlist: 23
Processing gene set: HALLMARK_REACTIVE_OXYGEN_SPECIES_PATHWAY | len of subsetlist: 46
Processing gene set: HALLMARK_TGF_BETA_SIGNALING | len of subsetlist: 48
Processing gene set: HALLMARK_MYC_TARGETS_V2 | len of subsetlist: 54
Processing gene set: HALLMARK_CHOLESTEROL_HOMEOSTASIS | len of subsetlist: 61
Processing gene set: HALLMARK_IL6_JAK_STAT3_SIGNALING | len of subsetlist: 74
Processing gene set: HALLMARK_PROTEIN_SECRETION | len of subsetlist: 87
Processing gene set: HALLMARK_INTERFERON_ALPHA_RESPONSE | len of subsetlist: 93
Processing gene set: HALLMARK_ANDROGEN_RESPONSE | len of subsetlist: 78
Processing gene set: HALLMARK_PEROXISOME | len of subsetlist: 82
Processing gene set: HALLMARK_PI3K_AKT_MTOR_SIGNALING | len of subsetlist: 91
Processing gene set: HALLMARK_BILE_ACID_METABOLISM | len of subsetlist: 66
Processing gene set: HALLMARK_UNFOLDED_PROTEIN_RESPONSE | len of subsetlist: 101
Processing gene set: HALLMARK_SPERMATOGENESIS | len of subsetlist: 64
Processing gene set: HALLMARK_COAGULATION | len of subsetlist: 72
Processing gene set: HALLMARK_UV_RESPONSE_DN | len of subsetlist: 101
Processing gene set: HALLMARK_DNA_REPAIR | len of subsetlist: 140
Processing gene set: HALLMARK_FATTY_ACID_METABOLISM | len of subsetlist: 126
Processing gene set: HALLMARK_UV_RESPONSE_UP | len of subsetlist: 125
Processing gene set: HALLMARK_APOPTOSIS | len of subsetlist: 142
Processing gene set: HALLMARK_MITOTIC_SPINDLE | len of subsetlist: 171
Processing gene set: HALLMARK_IL2_STAT5_SIGNALING | len of subsetlist: 167
Processing gene set: HALLMARK_TNFA_SIGNALING_VIA_NFKB | len of subsetlist: 187
Processing gene set: HALLMARK_HYPOXIA | len of subsetlist: 140
Processing gene set: HALLMARK_G2M_CHECKPOINT | len of subsetlist: 151
Processing gene set: HALLMARK_ADIPOGENESIS | len of subsetlist: 157
Processing gene set: HALLMARK_ESTROGEN_RESPONSE_EARLY | len of subsetlist: 116
Processing gene set: HALLMARK_ESTROGEN_RESPONSE_LATE | len of subsetlist: 118
Processing gene set: HALLMARK_MYOGENESIS | len of subsetlist: 90
Processing gene set: HALLMARK_INTERFERON_GAMMA_RESPONSE | len of subsetlist: 190
Processing gene set: HALLMARK_APICAL_JUNCTION | len of subsetlist: 110
Processing gene set: HALLMARK_COMPLEMENT | len of subsetlist: 159
Processing gene set: HALLMARK_MTORC1_SIGNALING | len of subsetlist: 183
Processing gene set: HALLMARK_E2F_TARGETS | len of subsetlist: 168
Processing gene set: HALLMARK_MYC_TARGETS_V1 | len of subsetlist: 188
Processing gene set: HALLMARK_EPITHELIAL_MESENCHYMAL_TRANSITION | len of subsetlist: 96
Processing gene set: HALLMARK_INFLAMMATORY_RESPONSE | len of subsetlist: 163
Processing gene set: HALLMARK_XENOBIOTIC_METABOLISM | len of subsetlist: 129
Processing gene set: HALLMARK_OXIDATIVE_PHOSPHORYLATION | len of subsetlist: 178
Processing gene set: HALLMARK_GLYCOLYSIS | len of subsetlist: 141
Processing gene set: HALLMARK_P53_PATHWAY | len of subsetlist: 161
Processing gene set: HALLMARK_HEME_METABOLISM | len of subsetlist: 148
Processing gene set: HALLMARK_ALLOGRAFT_REJECTION | len of subsetlist: 172
Processing gene set: HALLMARK_KRAS_SIGNALING_UP | len of subsetlist: 131
Processing gene set: HALLMARK_KRAS_SIGNALING_DN | len of subsetlist: 62
Finished: CPU Parallel 100 iterations for shape (3000, 12158), running time (min): 01:10.07

[10]:

roma

[10]:

scROMA: module activities are computed

[11]:

roma.adata

[11]:

AnnData object with n_obs × n_vars = 3000 × 12158
    obs: 'orig.ident', 'nCount_RNA', 'nFeature_RNA', 'stim', 'seurat_annotations', 'integrated_snn_res.0.5', 'seurat_clusters', 'condition', 'cell_type', 'n_genes'
    var: 'n_cells'
    uns: 'log1p', 'pca', 'neighbors', 'umap', 'seurat_annotations_colors', 'condition_colors', 'ROMA_stats', 'ROMA_active_modules'
    obsm: 'X_pca', 'X_umap'
    varm: 'PCs'
    obsp: 'distances', 'connectivities'

all the pyroma statistics¶

[12]:

roma.adata.uns['ROMA_stats']

[12]:

	L1	ppv L1	Median Exp	ppv Med Exp	q L1	q Med Exp
HALLMARK_NOTCH_SIGNALING	0.383079	0.35	-0.032327	0.316832	0.729167	0.465929
HALLMARK_HEDGEHOG_SIGNALING	0.264958	0.63	0.014416	0.564356	0.926471	0.667741
HALLMARK_ANGIOGENESIS	0.793618	0.03	0.169210	0.009901	0.500000	0.030941
HALLMARK_PANCREAS_BETA_CELLS	0.302861	0.50	0.067470	0.089109	0.862069	0.143724
HALLMARK_WNT_BETA_CATENIN_SIGNALING	0.279624	0.58	0.058241	0.089109	0.926471	0.143724
HALLMARK_APICAL_SURFACE	0.365530	0.38	0.013935	0.574257	0.760000	0.667741
HALLMARK_REACTIVE_OXYGEN_SPECIES_PATHWAY	0.543208	0.15	0.105772	0.029703	0.500000	0.064572
HALLMARK_TGF_BETA_SIGNALING	0.152006	0.89	0.113007	0.009901	1.000000	0.030941
HALLMARK_MYC_TARGETS_V2	0.202604	0.68	0.833996	0.009901	0.937500	0.030941
HALLMARK_CHOLESTEROL_HOMEOSTASIS	0.412974	0.17	0.065308	0.029703	0.500000	0.064572
HALLMARK_IL6_JAK_STAT3_SIGNALING	0.394130	0.16	-0.079453	0.019802	0.500000	0.055006
HALLMARK_PROTEIN_SECRETION	0.196540	0.70	0.049578	0.049505	0.937500	0.095202
HALLMARK_INTERFERON_ALPHA_RESPONSE	0.377076	0.18	4.424024	0.009901	0.500000	0.030941
HALLMARK_ANDROGEN_RESPONSE	0.261892	0.40	0.000554	0.980198	0.769231	0.980198
HALLMARK_PEROXISOME	0.362642	0.18	-0.055311	0.049505	0.500000	0.095202
HALLMARK_PI3K_AKT_MTOR_SIGNALING	0.169255	0.74	0.043356	0.108911	0.937500	0.170173
HALLMARK_BILE_ACID_METABOLISM	0.198035	0.70	0.019200	0.524752	0.937500	0.652016
HALLMARK_UNFOLDED_PROTEIN_RESPONSE	0.275479	0.25	0.136769	0.009901	0.657895	0.030941
HALLMARK_SPERMATOGENESIS	0.284264	0.52	0.005079	0.861386	0.866667	0.936289
HALLMARK_COAGULATION	0.451178	0.09	0.311346	0.009901	0.500000	0.030941
HALLMARK_UV_RESPONSE_DN	0.267346	0.28	0.007185	0.792079	0.666667	0.880088
HALLMARK_DNA_REPAIR	0.090157	0.94	-0.142698	0.009901	1.000000	0.030941
HALLMARK_FATTY_ACID_METABOLISM	0.221426	0.42	-0.070138	0.039604	0.777778	0.082508
HALLMARK_UV_RESPONSE_UP	0.241909	0.33	0.049684	0.079208	0.729167	0.136565
HALLMARK_APOPTOSIS	0.278954	0.18	0.102191	0.009901	0.500000	0.030941
HALLMARK_MITOTIC_SPINDLE	0.049669	1.00	0.051391	0.069307	1.000000	0.123762
HALLMARK_IL2_STAT5_SIGNALING	0.361183	0.04	0.014583	0.435644	0.500000	0.558517
HALLMARK_TNFA_SIGNALING_VIA_NFKB	0.286159	0.13	0.346887	0.009901	0.500000	0.030941
HALLMARK_HYPOXIA	0.184140	0.60	-0.080034	0.029703	0.926471	0.064572
HALLMARK_G2M_CHECKPOINT	0.093552	0.94	-0.002816	0.900990	1.000000	0.958500
HALLMARK_ADIPOGENESIS	0.084591	0.97	-0.018863	0.376238	1.000000	0.508429
HALLMARK_ESTROGEN_RESPONSE_EARLY	0.115814	0.90	0.000487	0.970297	1.000000	0.980198
HALLMARK_ESTROGEN_RESPONSE_LATE	0.248334	0.35	-0.017774	0.534653	0.729167	0.652016
HALLMARK_MYOGENESIS	0.143026	0.81	0.070651	0.019802	0.987805	0.055006
HALLMARK_INTERFERON_GAMMA_RESPONSE	0.331686	0.08	1.677966	0.009901	0.500000	0.030941
HALLMARK_APICAL_JUNCTION	0.267790	0.28	0.027541	0.346535	0.666667	0.495050
HALLMARK_COMPLEMENT	0.310541	0.12	0.385006	0.009901	0.500000	0.030941
HALLMARK_MTORC1_SIGNALING	0.099295	0.92	-0.015835	0.425743	1.000000	0.558517
HALLMARK_E2F_TARGETS	0.064892	0.99	0.131956	0.009901	1.000000	0.030941
HALLMARK_MYC_TARGETS_V1	0.190448	0.47	1.139576	0.009901	0.839286	0.030941
HALLMARK_EPITHELIAL_MESENCHYMAL_TRANSITION	0.435304	0.03	0.116284	0.009901	0.500000	0.030941
HALLMARK_INFLAMMATORY_RESPONSE	0.300841	0.12	0.350755	0.009901	0.500000	0.030941
HALLMARK_XENOBIOTIC_METABOLISM	0.154182	0.75	0.038156	0.118812	0.937500	0.180018
HALLMARK_OXIDATIVE_PHOSPHORYLATION	0.072015	0.98	-0.475797	0.009901	1.000000	0.030941
HALLMARK_GLYCOLYSIS	0.178932	0.63	-0.075843	0.029703	0.926471	0.064572
HALLMARK_P53_PATHWAY	0.269423	0.16	-0.018395	0.356436	0.500000	0.495050
HALLMARK_HEME_METABOLISM	0.152306	0.75	-0.007931	0.772277	0.937500	0.877588
HALLMARK_ALLOGRAFT_REJECTION	0.287760	0.13	-0.063326	0.029703	0.500000	0.064572
HALLMARK_KRAS_SIGNALING_UP	0.348036	0.07	-0.062998	0.069307	0.500000	0.123762
HALLMARK_KRAS_SIGNALING_DN	0.520298	0.09	-0.000882	0.980198	0.500000	0.980198

active pathways¶

[13]:

roma.adata.uns['ROMA_active_modules'].sort_values(by='Median Exp')

[13]:

	L1	ppv L1	Median Exp	ppv Med Exp	q L1	q Med Exp
HALLMARK_OXIDATIVE_PHOSPHORYLATION	0.072015	0.98	-0.475797	0.009901	1.000000	0.030941
HALLMARK_DNA_REPAIR	0.090157	0.94	-0.142698	0.009901	1.000000	0.030941
HALLMARK_APOPTOSIS	0.278954	0.18	0.102191	0.009901	0.500000	0.030941
HALLMARK_TGF_BETA_SIGNALING	0.152006	0.89	0.113007	0.009901	1.000000	0.030941
HALLMARK_EPITHELIAL_MESENCHYMAL_TRANSITION	0.435304	0.03	0.116284	0.009901	0.500000	0.030941
HALLMARK_E2F_TARGETS	0.064892	0.99	0.131956	0.009901	1.000000	0.030941
HALLMARK_UNFOLDED_PROTEIN_RESPONSE	0.275479	0.25	0.136769	0.009901	0.657895	0.030941
HALLMARK_ANGIOGENESIS	0.793618	0.03	0.169210	0.009901	0.500000	0.030941
HALLMARK_COAGULATION	0.451178	0.09	0.311346	0.009901	0.500000	0.030941
HALLMARK_TNFA_SIGNALING_VIA_NFKB	0.286159	0.13	0.346887	0.009901	0.500000	0.030941
HALLMARK_INFLAMMATORY_RESPONSE	0.300841	0.12	0.350755	0.009901	0.500000	0.030941
HALLMARK_COMPLEMENT	0.310541	0.12	0.385006	0.009901	0.500000	0.030941
HALLMARK_MYC_TARGETS_V2	0.202604	0.68	0.833996	0.009901	0.937500	0.030941
HALLMARK_MYC_TARGETS_V1	0.190448	0.47	1.139576	0.009901	0.839286	0.030941
HALLMARK_INTERFERON_GAMMA_RESPONSE	0.331686	0.08	1.677966	0.009901	0.500000	0.030941
HALLMARK_INTERFERON_ALPHA_RESPONSE	0.377076	0.18	4.424024	0.009901	0.500000	0.030941

[14]:

roma.summary()


=== ROMA Analysis Summary ===

Total gene sets analyzed: 50
Active modules (overdispersed): 0
Active modules (shifted): 16

Top 5 overdispersed modules:
  HALLMARK_ANGIOGENESIS: L1=0.794, q=5.000e-01
  HALLMARK_REACTIVE_OXYGEN_SPECIES_PATHWAY: L1=0.543, q=5.000e-01
  HALLMARK_CHOLESTEROL_HOMEOSTASIS: L1=0.413, q=5.000e-01
  HALLMARK_IL6_JAK_STAT3_SIGNALING: L1=0.394, q=5.000e-01
  HALLMARK_INTERFERON_ALPHA_RESPONSE: L1=0.377, q=5.000e-01

Top 5 shifted modules:
  HALLMARK_ANGIOGENESIS: Med=0.169, q=3.094e-02
  HALLMARK_TGF_BETA_SIGNALING: Med=0.113, q=3.094e-02
  HALLMARK_MYC_TARGETS_V2: Med=0.834, q=3.094e-02
  HALLMARK_INTERFERON_ALPHA_RESPONSE: Med=4.424, q=3.094e-02
  HALLMARK_UNFOLDED_PROTEIN_RESPONSE: Med=0.137, q=3.094e-02

Potential issues found: 1
  missing_genes: 1 modules

visualize results¶

[15]:

save_dir=os.path.join(output_dir,sample_name,'01_figures')
os.makedirs(save_dir, exist_ok=True)
sc.settings.figdir = save_dir

[28]:

roma.load_active_modules_results(path=os.path.join(output_dir,sample_name))

active_pathways = roma.adata.uns['ROMA_active_modules'].index.tolist()

df = pd.DataFrame(index=adata.obs.index)
for k in active_pathways:
    v = adata.uns['ROMA'][k]
    df[k] = v.svd.components_[0]

adata.obsm['pyroma_scores'] = df.copy()
adata

[28]:

AnnData object with n_obs × n_vars = 3000 × 12158
    obs: 'orig.ident', 'nCount_RNA', 'nFeature_RNA', 'stim', 'seurat_annotations', 'integrated_snn_res.0.5', 'seurat_clusters', 'condition', 'cell_type', 'n_genes'
    var: 'n_cells'
    uns: 'log1p', 'pca', 'neighbors', 'umap', 'seurat_annotations_colors', 'condition_colors', 'ROMA_stats', 'ROMA_active_modules', 'ROMA'
    obsm: 'X_pca', 'X_umap', 'pyroma_scores'
    varm: 'PCs'
    obsp: 'distances', 'connectivities'

[29]:

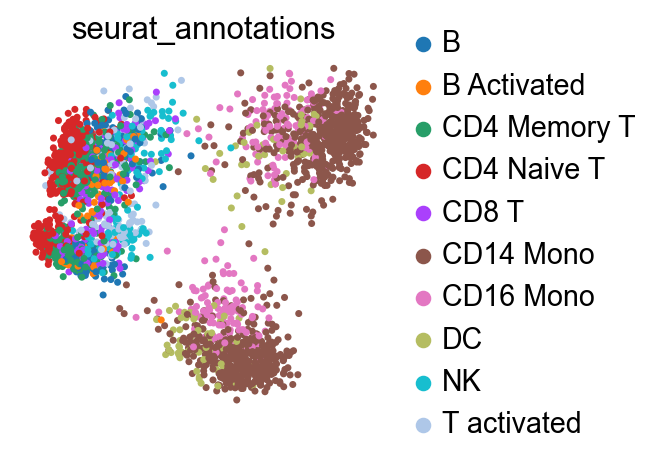

sc.pl.pca(adata, color=['seurat_annotations',
                                ],
                                frameon=False,
                                #ncols=2,
                                wspace=0.4)

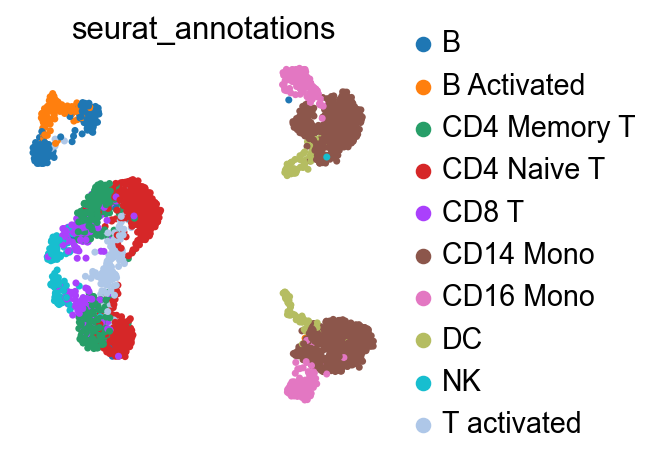

sc.pl.umap(adata, color=['seurat_annotations',
                                ],
                                frameon=False,
                                #ncols=2,
                                wspace=0.4)

../_images/tutorials_advanced_usage_26_0.png

../_images/tutorials_advanced_usage_26_1.png

[30]:

genesets = roma.read_gmt_to_dict(roma.gmt)
genesets.keys()

[30]:

dict_keys(['HALLMARK_TNFA_SIGNALING_VIA_NFKB', 'HALLMARK_HYPOXIA', 'HALLMARK_CHOLESTEROL_HOMEOSTASIS', 'HALLMARK_MITOTIC_SPINDLE', 'HALLMARK_WNT_BETA_CATENIN_SIGNALING', 'HALLMARK_TGF_BETA_SIGNALING', 'HALLMARK_IL6_JAK_STAT3_SIGNALING', 'HALLMARK_DNA_REPAIR', 'HALLMARK_G2M_CHECKPOINT', 'HALLMARK_APOPTOSIS', 'HALLMARK_NOTCH_SIGNALING', 'HALLMARK_ADIPOGENESIS', 'HALLMARK_ESTROGEN_RESPONSE_EARLY', 'HALLMARK_ESTROGEN_RESPONSE_LATE', 'HALLMARK_ANDROGEN_RESPONSE', 'HALLMARK_MYOGENESIS', 'HALLMARK_PROTEIN_SECRETION', 'HALLMARK_INTERFERON_ALPHA_RESPONSE', 'HALLMARK_INTERFERON_GAMMA_RESPONSE', 'HALLMARK_APICAL_JUNCTION', 'HALLMARK_APICAL_SURFACE', 'HALLMARK_HEDGEHOG_SIGNALING', 'HALLMARK_COMPLEMENT', 'HALLMARK_UNFOLDED_PROTEIN_RESPONSE', 'HALLMARK_PI3K_AKT_MTOR_SIGNALING', 'HALLMARK_MTORC1_SIGNALING', 'HALLMARK_E2F_TARGETS', 'HALLMARK_MYC_TARGETS_V1', 'HALLMARK_MYC_TARGETS_V2', 'HALLMARK_EPITHELIAL_MESENCHYMAL_TRANSITION', 'HALLMARK_INFLAMMATORY_RESPONSE', 'HALLMARK_XENOBIOTIC_METABOLISM', 'HALLMARK_FATTY_ACID_METABOLISM', 'HALLMARK_OXIDATIVE_PHOSPHORYLATION', 'HALLMARK_GLYCOLYSIS', 'HALLMARK_REACTIVE_OXYGEN_SPECIES_PATHWAY', 'HALLMARK_P53_PATHWAY', 'HALLMARK_UV_RESPONSE_UP', 'HALLMARK_UV_RESPONSE_DN', 'HALLMARK_ANGIOGENESIS', 'HALLMARK_HEME_METABOLISM', 'HALLMARK_COAGULATION', 'HALLMARK_IL2_STAT5_SIGNALING', 'HALLMARK_BILE_ACID_METABOLISM', 'HALLMARK_PEROXISOME', 'HALLMARK_ALLOGRAFT_REJECTION', 'HALLMARK_SPERMATOGENESIS', 'HALLMARK_KRAS_SIGNALING_UP', 'HALLMARK_KRAS_SIGNALING_DN', 'HALLMARK_PANCREAS_BETA_CELLS'])

[34]:

geneset_name = 'HALLMARK_INTERFERON_GAMMA_RESPONSE'


roma.adata.obs[f'{geneset_name}_projections_1'] = roma.adata.uns['ROMA'][f'{geneset_name}'].svd.components_[0]
roma.adata.obs[f'{geneset_name}_projections_1_reverse'] = -1 * roma.adata.uns['ROMA'][f'{geneset_name}'].svd.components_[0]

GeneScores = pd.DataFrame(roma.adata.uns['ROMA'][f'{geneset_name}'].projections_1,
                index=roma.adata.uns['ROMA'][f'{geneset_name}'].subsetlist,
                columns=[f'{geneset_name}'])

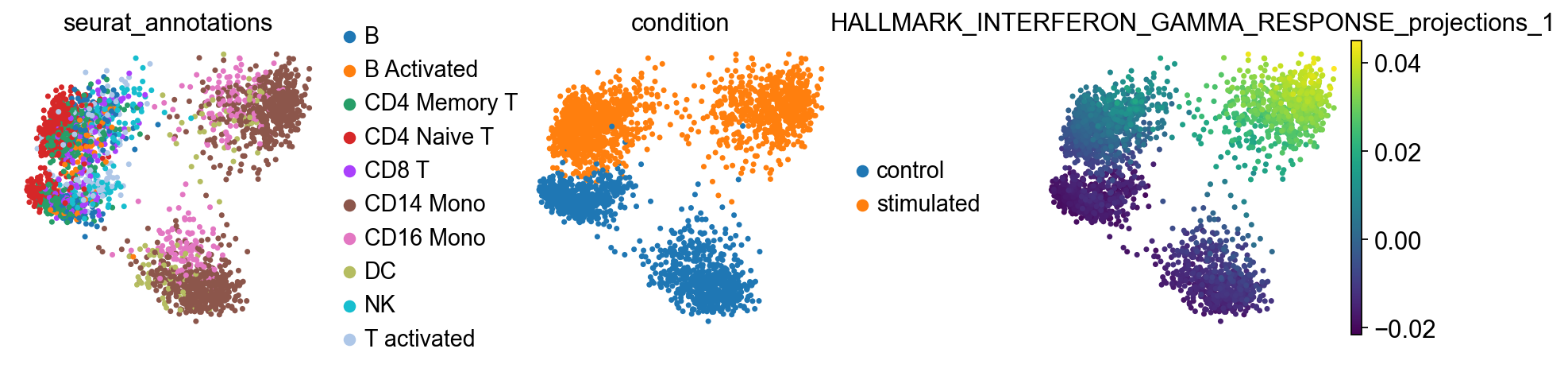

sc.pl.pca(adata, color=['seurat_annotations',
                                'condition',
                                f'{geneset_name}_projections_1'],
                                ncols=3,
                                wspace=0.5)

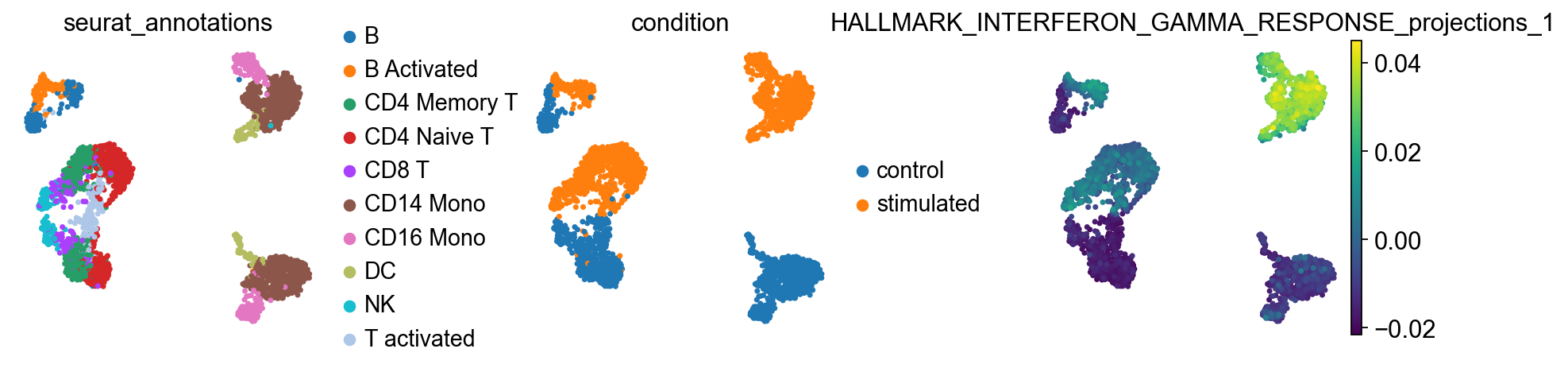

sc.pl.umap(adata, color=['seurat_annotations',
                         'condition',
                                f'{geneset_name}_projections_1'],
                                ncols=3,
                                wspace=0.5)

../_images/tutorials_advanced_usage_28_0.png

../_images/tutorials_advanced_usage_28_1.png

top contributing genes¶

[37]:

GeneScores.sort_values(by=geneset_name, ascending=False)

[37]:

	HALLMARK_INTERFERON_GAMMA_RESPONSE
ISG15	85.189522
CXCL10	72.494965
IFITM3	47.420273
ISG20	47.004150
CCL2	43.896164
...	...
SOCS3	-1.331164
PIM1	-1.750599
CCL5	-2.078131
VAMP8	-2.914884
BTG1	-17.022533

190 rows × 1 columns

[41]:

# number of top and bottom genes
n_top = 10
short_name = geneset_name.split('_')[1]

top_n = GeneScores.sort_values(by=f'{geneset_name}', ascending=False).head(n_top).index.tolist()
bottom_n = GeneScores.sort_values(by=f'{geneset_name}', ascending=False).tail(n_top).index.tolist()

top_mean_exp = roma.adata[:, top_n].X.mean(axis=1)
bottom_mean_exp = roma.adata[:, bottom_n].X.mean(axis=1)

roma.adata.obs[f'top_{n_top}_{short_name}_Mean_Exp'] = top_mean_exp
roma.adata.obs[f'bottom_{n_top}_{short_name}_Mean_Exp'] = bottom_mean_exp

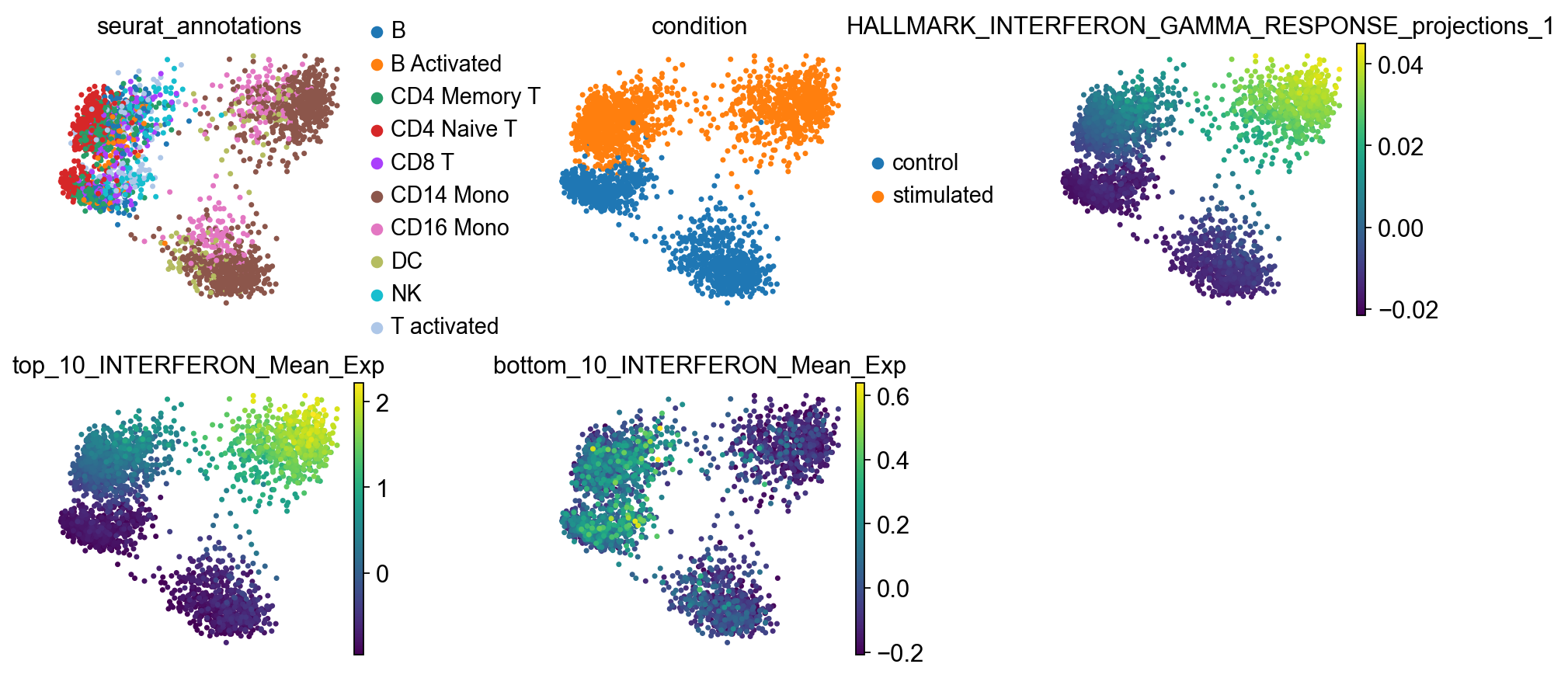

sc.pl.pca(roma.adata, color=['seurat_annotations', 'condition',
                                f'{geneset_name}_projections_1',
                                f'top_{n_top}_{short_name}_Mean_Exp',
                                f'bottom_{n_top}_{short_name}_Mean_Exp'],

                                ncols=3,
                                wspace=0.5)

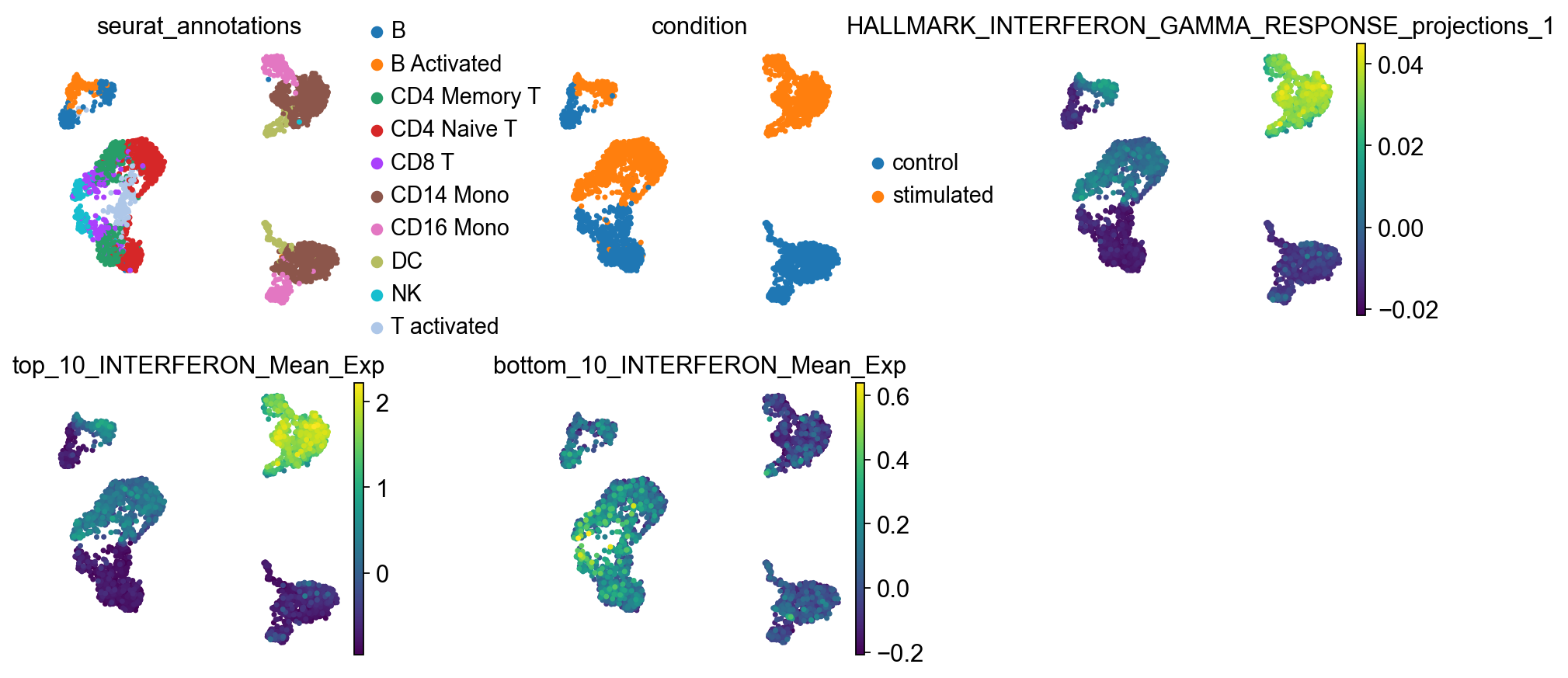

sc.pl.umap(roma.adata, color=['seurat_annotations', 'condition',
                                f'{geneset_name}_projections_1',
                                f'top_{n_top}_{short_name}_Mean_Exp',
                                f'bottom_{n_top}_{short_name}_Mean_Exp'],

                                ncols=3,
                                wspace=0.5)

../_images/tutorials_advanced_usage_31_0.png

../_images/tutorials_advanced_usage_31_1.png
